National high-tech enterprise sheet metal brake bending/sheet metal cutting and bending machine/sheet metal brake

  • 1 - 1 Sets
    $12,000.00
  • >=2 Sets
    $11,000.00
Nominal Pressure (kN):
1250
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Slider Stroke (mm):
150 mm mm
Automatic Level:
Fully Automatic
Nominal Pressure (kN):
1250 kN
Throat Depth (mm):
320 mm mm
Machine Type:
Torsion Bar
Length of Working Table (mm):
4000 mm
Width of Working Table (mm):
1800 mm mm
Dimension:
4500*1800*2450mm
Condition:
New
Place of Origin:
China, Jiangsu, China
Brand Name:
KING BALL
Material / Metal Processed:
Brass / Copper, Stainless Steel, ALLOY, Carbon Steel, Aluminum
Automation:
Automatic
Extra Services:
Machining
Certification:
CE, ISO9001:2008,BV,TUV
Year:
2020
Weight (KG):
8800
Motor Power (kw):
7.5 kw
Key Selling Points:
Competitive Price,High-accuracy,Hgh Productivity
Warranty:
2 Years
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining
Local Service Location:
Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Pakistan, India, Thailand
Showroom Location:
None
Marketing Type:
New Product 2020
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
2 Years
Core Components:
Motor
Product name:
Torsion Bar Synchronous CNC Press Brake
Type:
Hydraulic Metal Bending Machine
Power:
Hydraulic
Control system:
CT8,DA41S,E210,E200,A65
Main motor:
Siemens Germany
Throat Depth:
320mm
Usage:
Metal Sheet Bending
Size:
Customized
Color:
All colors
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Press brake is usually packaged in plastic film,if you need other packaging,we can also meet you.
Port
shanghai port
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Video Description
Product Description

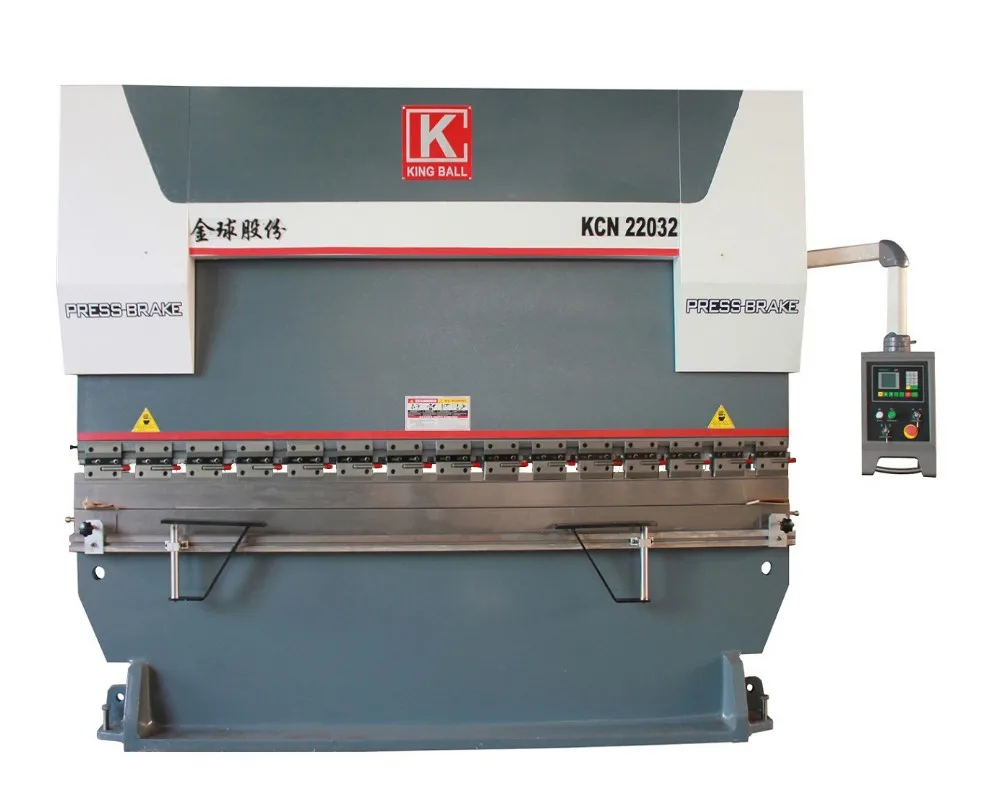

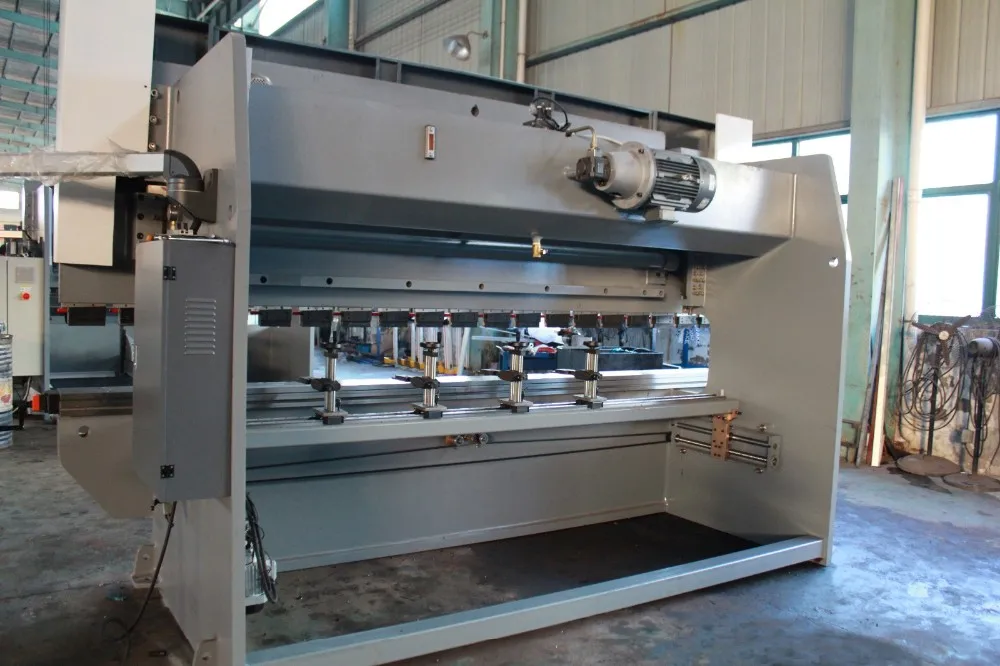

Torsion bar Synchronous NC Press Brake
Model: KCN-12540


2 Axis CNC Control(X, Y,)
X: Backgauge front and back;         Y: Ram stroke
W: Worktable crowning (optional)

Main Features

1.  Overall welded and processed structure.
2.  High mechanical strength and strong rigidity.
3.  Ram stroke hydraulic approaching downward, stable and reliable.
4.  E21 can control the movement of ram stroke and backgauge, achieving efficient and highly precise positioning.
5.  Wedge compensation on top punch clamping.
6.  Simplified top blades clamping with micro-adjustment wedges,for easy operation and high precision.
7.  2 Sliding front sheet support arms mounted onto T slot of the bed.
8.  Solid one block four face multi V die.
9.  Approved stable and reliable hydraulics.
10. Stop fingers with milscale for plate bending machine.

Technical Parameters

NO.
Item
Parameter
Unit
1
Nominal pressure
1250
KN
2
Table length
4000
mm
3
Max.Slider stroke
150
mm
4
Max.Shut height
410
mm
5
Between columns
3100
mm
6
Throat depth
320
mm
7
Main motor power
7.5
KW
8
Down Speed
100
mm/s
9
Pressing Speed
10
mm/s
10
Return Speed
90
mm/s
11
Control axis
X+Y
/
12
X axis Stroke
500
mm
13
Backgauge Stoppers
2
/



Overall dimension
L
4500
mm
14
Overall dimension
W
1800
mm
H
2450
mm
15
Machine weight
8800
kg
Detailed Images

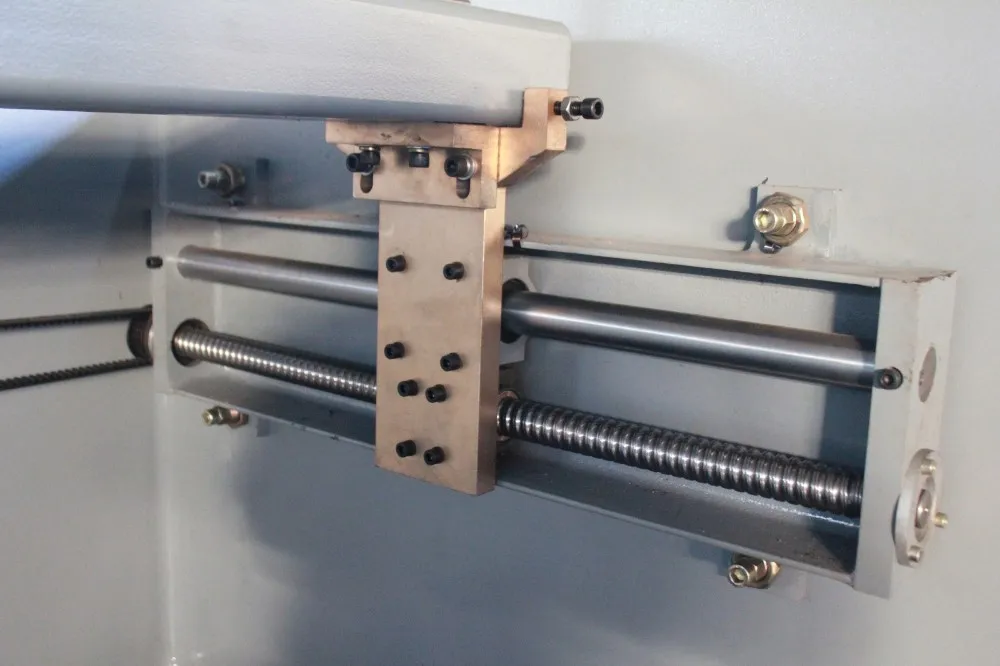

Backgauge with ball screw and round guide.

Multifunction adjustment of the tightening wheel.

Manual table crowning (optional).

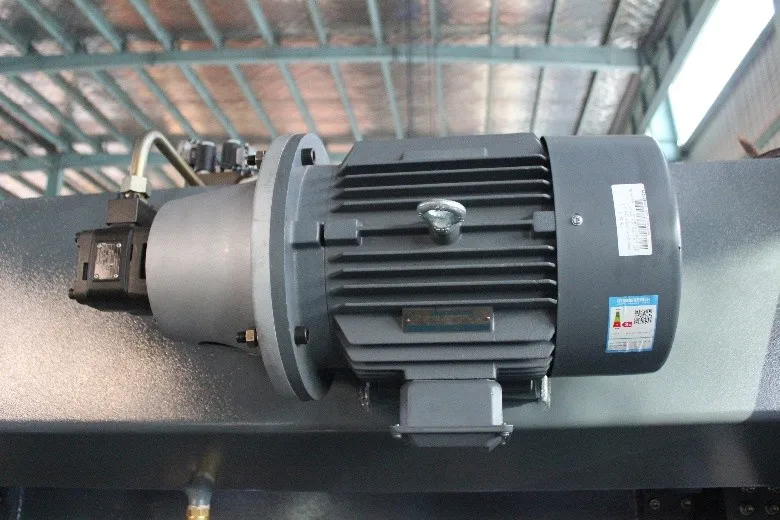

Siemens main motor German brand.
Sunny pump USA brand.
Rexroth valve German brand.

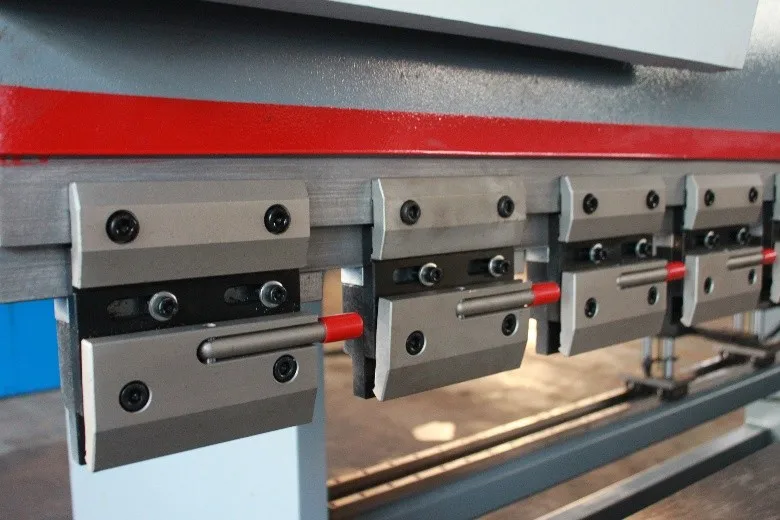

European style quick release clamping.

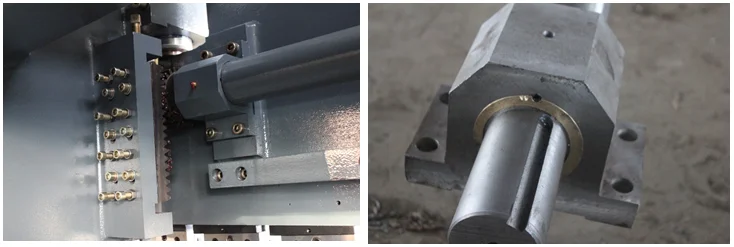

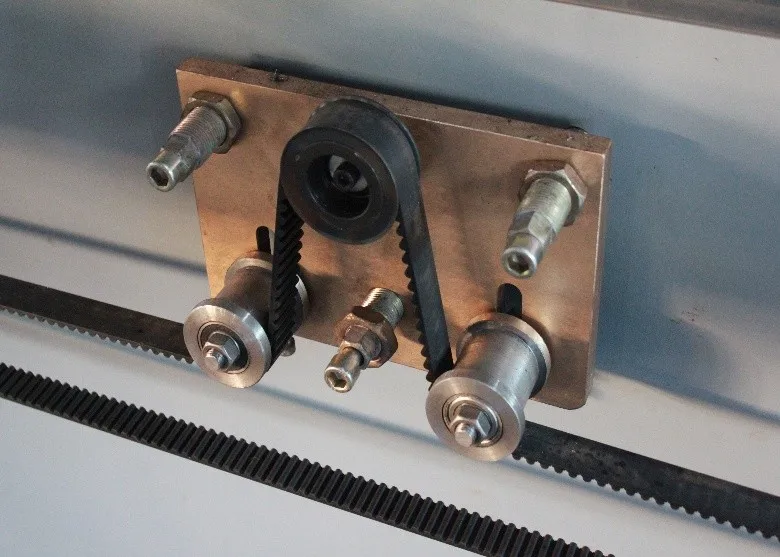

The torsion bar is synchronized with the gear rack. ram down fast, easy to adjust the two sides of the synchronization. The connector use wear - resistant brass.

Pedal switch with emergency stop, safe operation, the base with rollers easy to move.

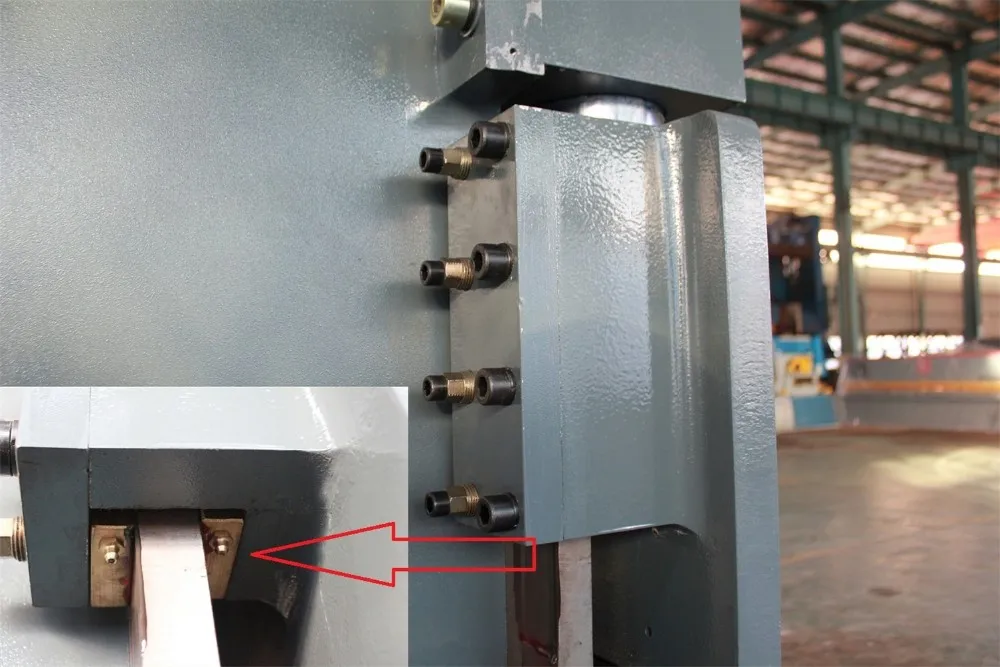

The guideway use the brass, wear-resisting, long service life.

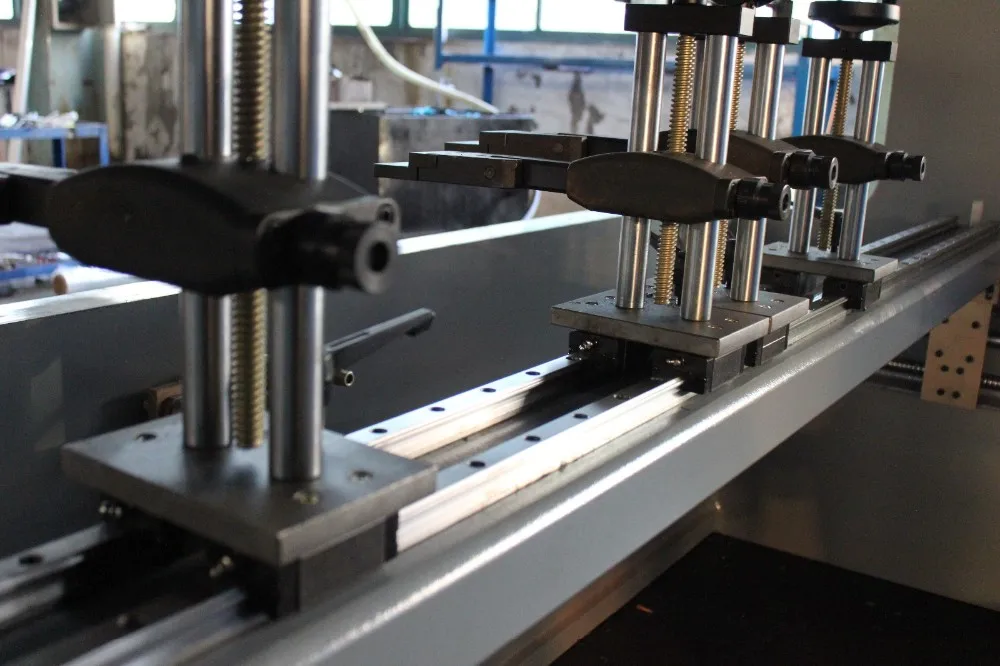

The stopper up and down by manual, move left and right on two linear guides.

Main configuration

Name
Producer
CNC controller
E21 Estun                             China Brand
Main motor
Siemens                                Germany brand
Electrical components
Schneider                             France brand
Gear pump
Sunny                                   USA brand
Seal ring
NOK                                    Japan brand
Hydraulic system
Boschrexroth                       Germany brand
Ball screw ,Linear guide
HIWIN                                Taiwan brand
Tubing connector
EMB                                    Germany Brand
Variable frequency drive
Shihlin                                 Taiwan Brand

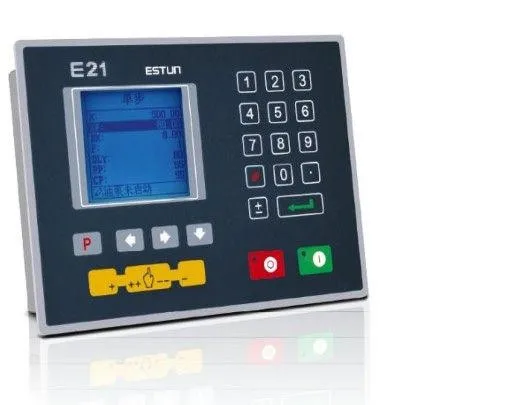

E21 NC controller

*  Backgauge and block control
*  Control for general AC motors, frequency inverter Intelligent positioning
*  Stock counter Holding/decompression time setting
*  Program memory of up to 40 programs Up to 25 steps per program
*  One side positioning Retract function
*  One key backup/restore of parameters mm/inch
*  Chinese /English

The standard accessories are in the below
1. Anchor bolt
2. Hex nut
3. Seal ring
4. Gasket
5. Grease gun
6. Allen wrench
7. Foot switch
8. Front support arms
9. Electrical box key, control panel key
10. Operation manuals

Our Factory&Clients

NANJING Jinqiu CNC Machine Tool Co., Ltd
has been focusing on research and design, manufacturing and sales of better prices with better quality machines such as Press Brakes, Shearing Machines,Rolling Machines,Press Machine,Ironworkers,Pipe Bend Machine, press brake tooling blade and so on, our brand is Kingball ,since it was established in 2003. Kingball is a true expert of machine- manufacturing based on almost 20 years' experience

Certifications
Our Service

Pre-sales services:

* Inquiry and consulting support

* Sample testing support
* Visit our factory

After-sales services:

* 2 years warranty period

* Training how to install and use the machine
* Engineers available to service machinery overseas

Related Products

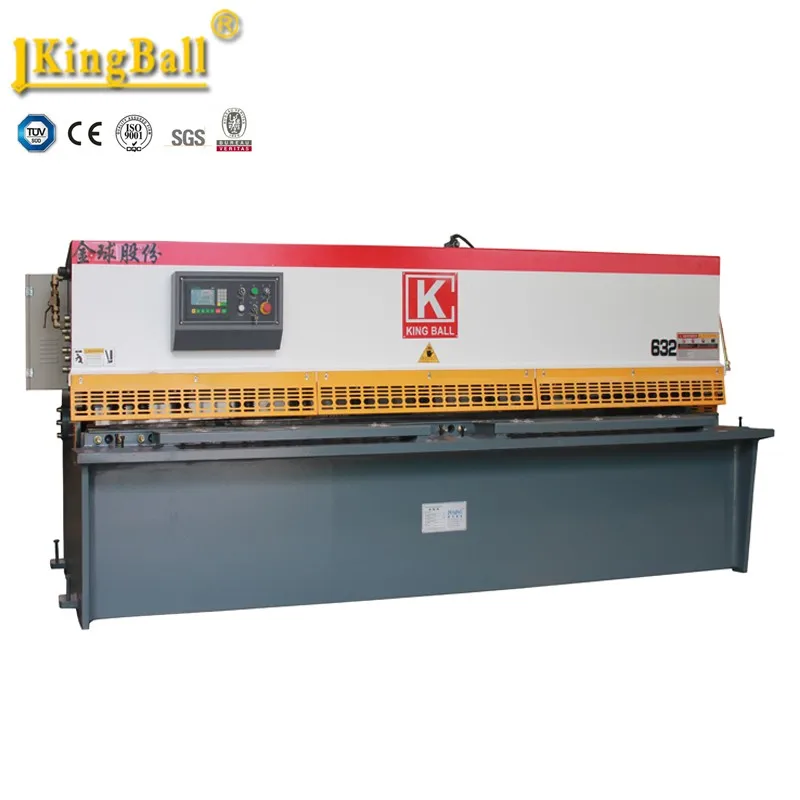

Shearing Machine


Hydraulic Press

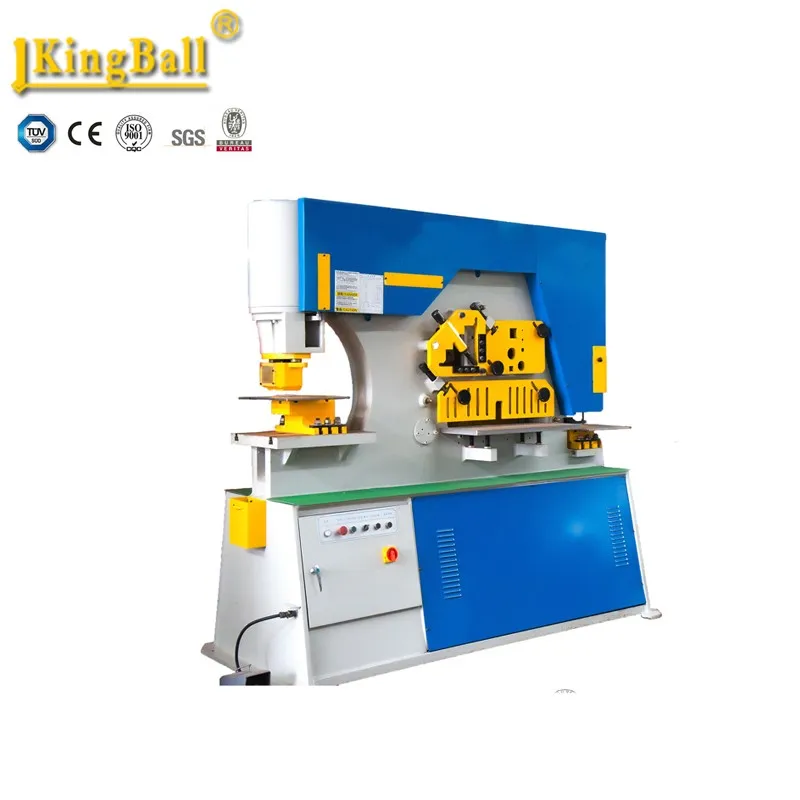

Iron Worker
