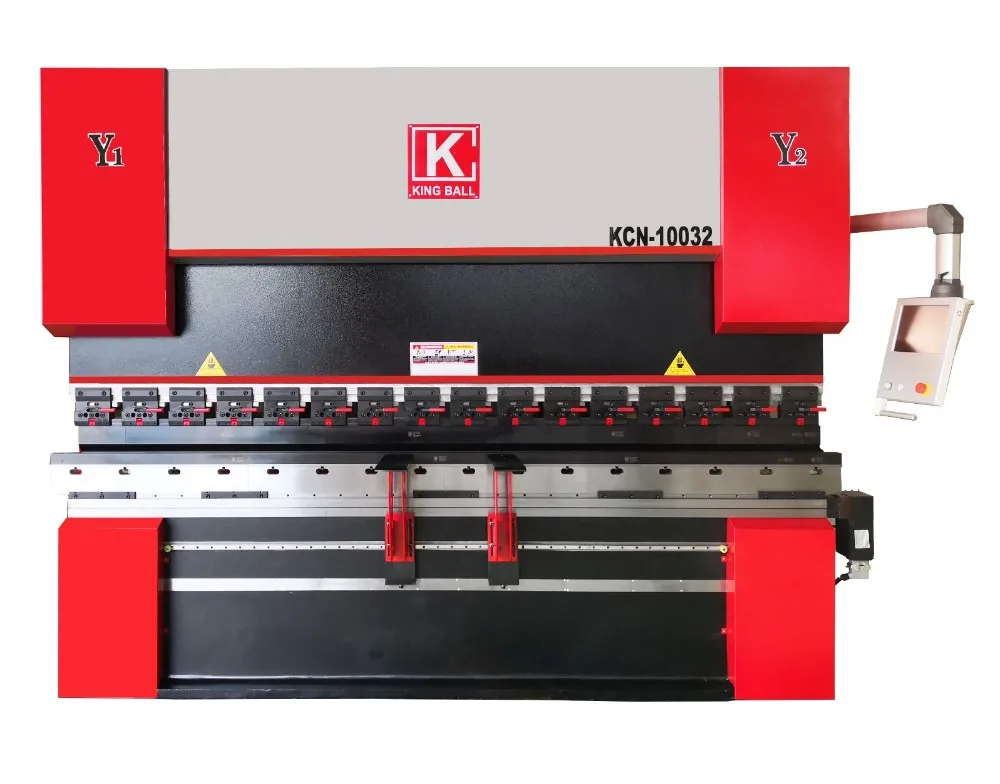

4+1 Axis CNC Control(X,Y1,Y2,R,W) X: Backgauge front and back; Y1,Y2, : Left and right oil cylinder stroke R : Backgauge up and down; W: Worktable crowning
1) Overall welded and processed structure.
2) Electric hydraulic proportional servo synchronization, ensuring repeated accuracy.
3) Within one stroke, bending pressure can be controlled at random point, repeatability precision±0.01, parallelism 0.02.
4) Lower worktable has crowning device to anti deflection & upper tool has wedge compensation device.
5) Switzerland cybelec CNC control system, grating ruler, Rexroth hydraulics, servo motors and other accessories of famous brand are installed for perfect machine performance.
6) Ram stroke(Y1, Y2),backgauge (X, R) are controlled by CNC controller while ball screw and linear guide rail installed for high repeatability precision.
7) Imported ball screw and linear guide are used for rear stopper, to ensure the positioning precision of rear stopper, for processing precision of machine to be higher.
Main motor power
X axis Stroke
X axis Speed
R axis Stroke
R axis Speed

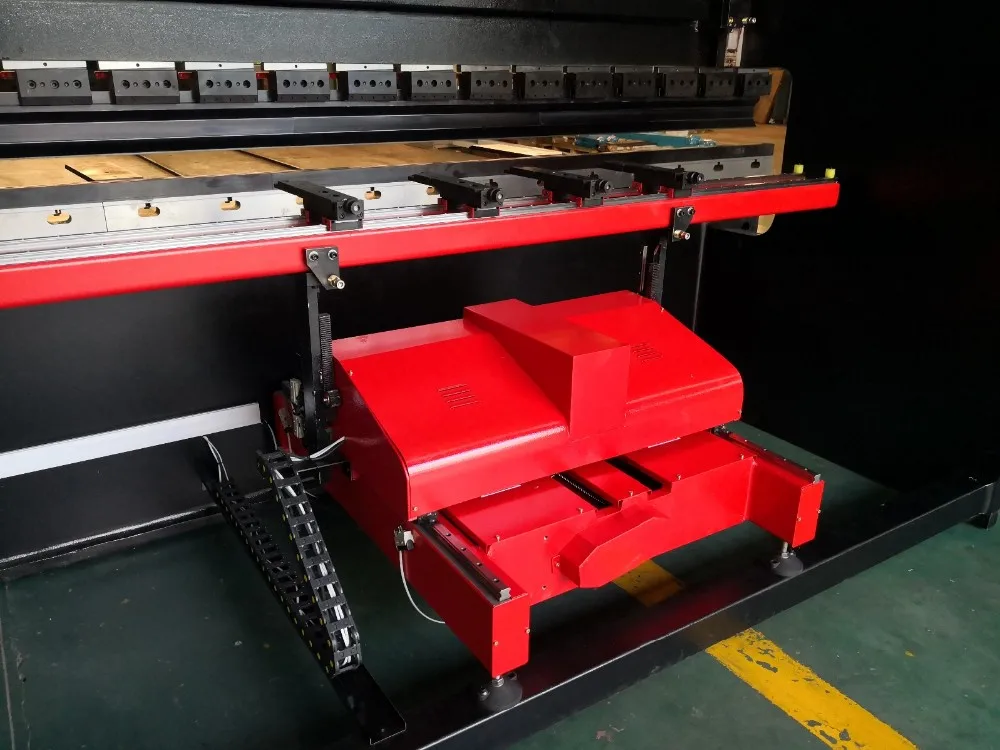

Backgauge with ball screw and linear guide, high precision, fast speed and low noise.

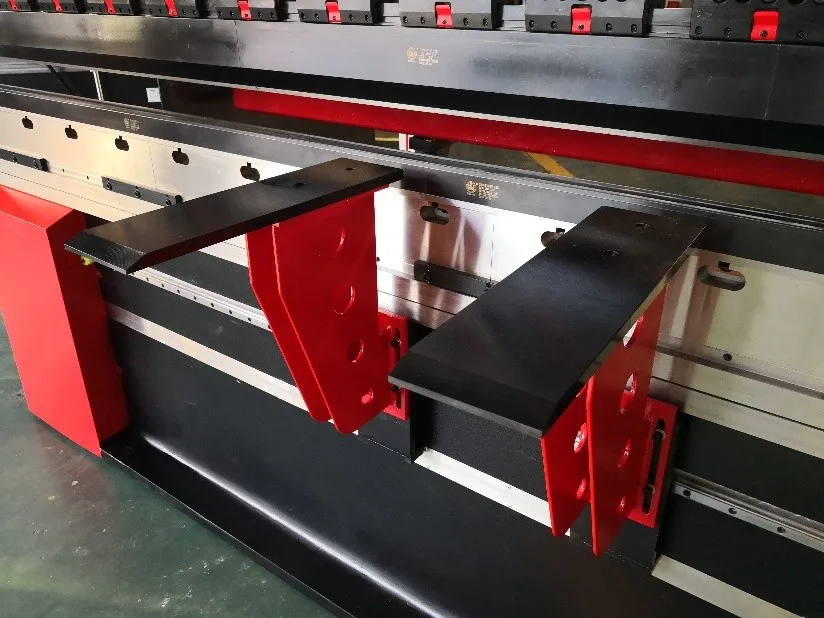

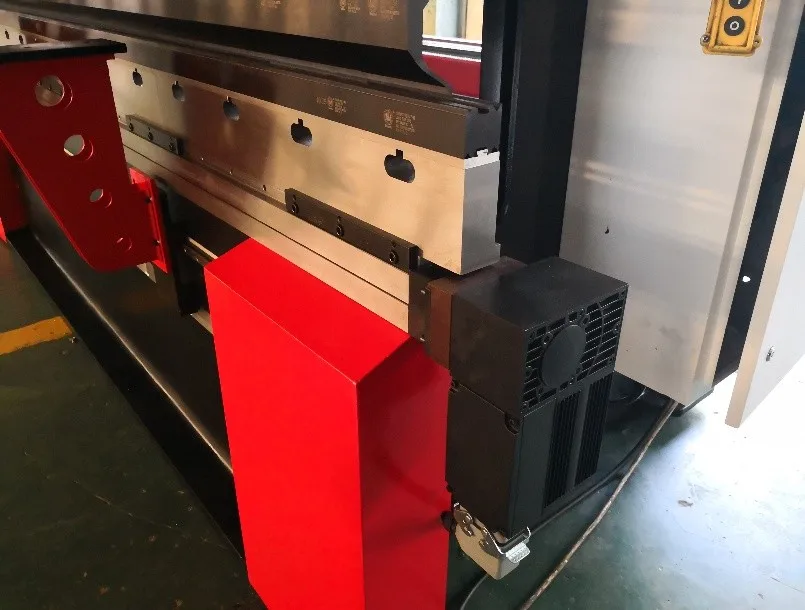

Double sliding front support arm installed on the linear guide, movable easy
High precision electric table crowning

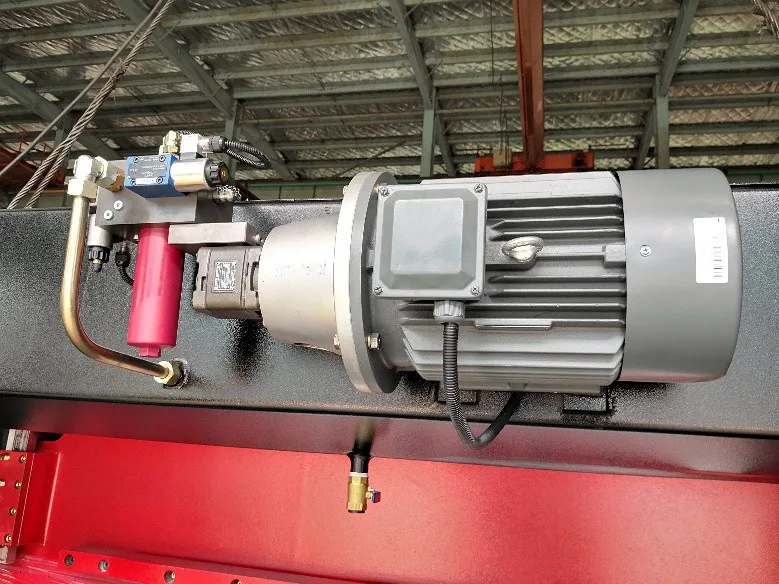

Siemens main motor German brand.
Sunny pump USA brand.
Rexroth valve German brand.

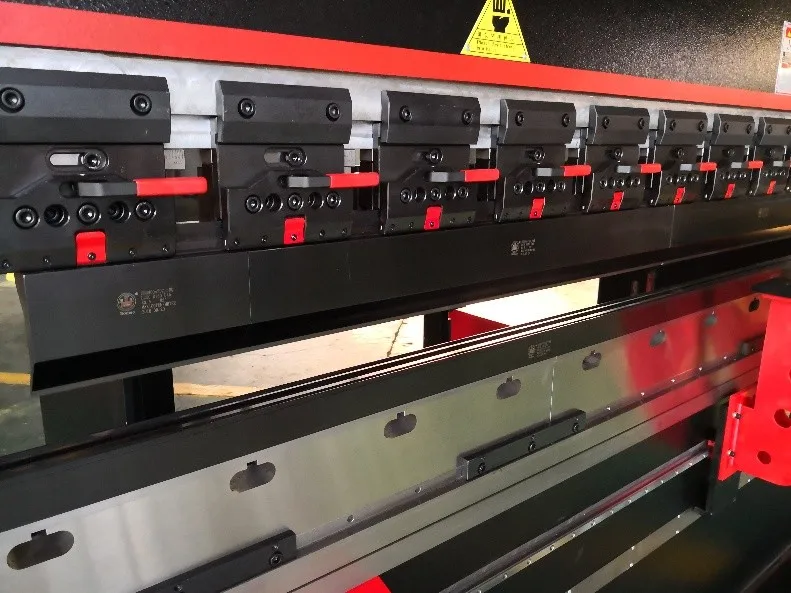

European style quick release clamping.

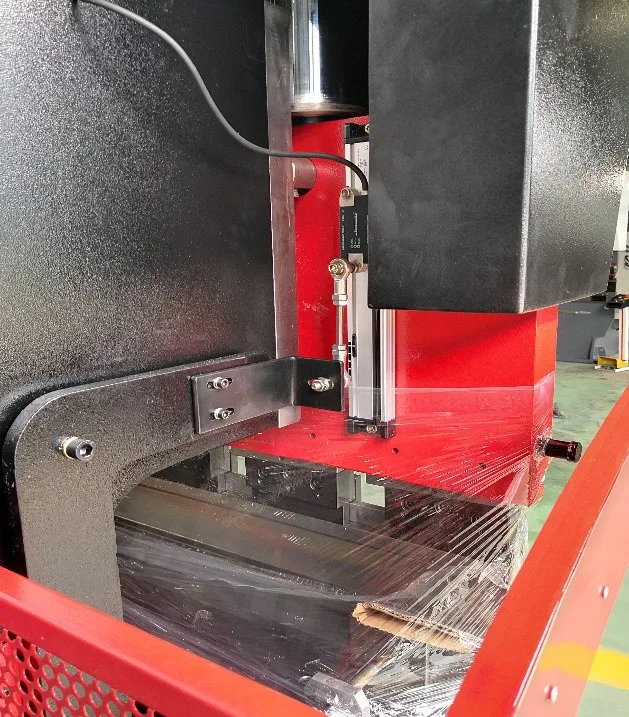

High-precision grating scale mounted on C-board

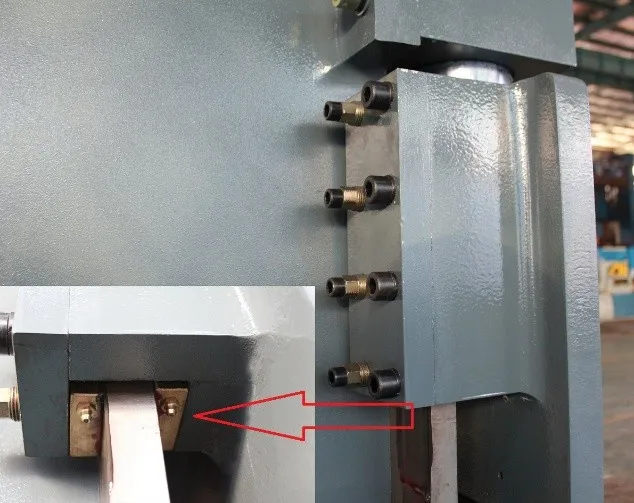

The guideway use the brass, wear-resisting, long service life.

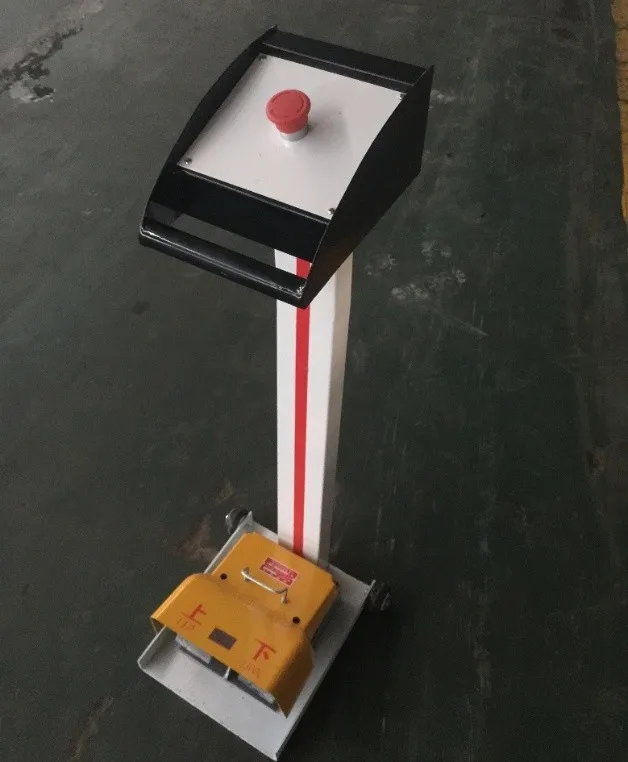

Pedal switch with emergency stop

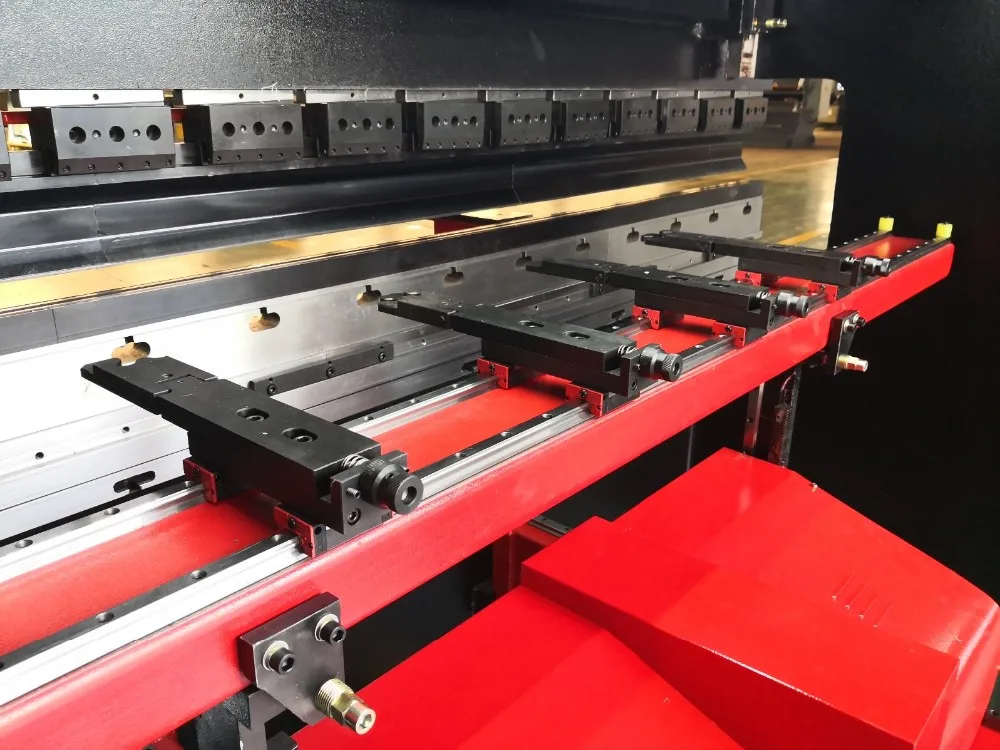

The stopper move left and right on two linear guides

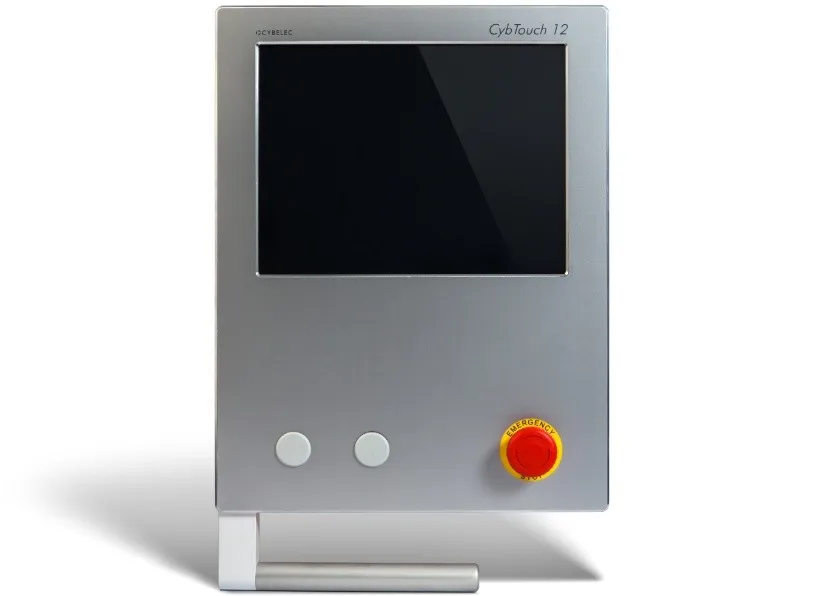

CybTouch 12 CNC controller
Easy Operating: (1) Large, vivid and high-contrast fully touchscreen. (2) Simple pages, clear display, large keys. (3) Intuitive user-friendly interface. (4) Complete programming for efficient mass-production with multiple bends. (5) Easy single bends with Easy Bend page. (6) On-line help and interactive warning pop-ups. (7) Comfortable wireless data backup and software updating using PC or Notebook. (8) Large variety of languages available.
Better Bending: (1) Various automatic calculations of bend functions. (2) Bending sequences and programs can be memorized. (3) Angle, pressure and crowning management. (4) Easy manual movement. (5) Offline 2D software available.
Powerful: (1) Controls 4 axes. (2) Automatic bend sequencing (option). (3) Bend allowance calculation. (4) Pressure – crowning calculation. (5) Modular tools for each part or bend.
(6) Angle and back gauge correction. (7) Tele maintenance via wireless connection with PC or notebook. (8) USB port for memory stick for data transfer/backup.
CT12 Switzerland brand
Siemens Germany brand
Schneider France brand
Sunny USA brand
NOK Japan brand
Boschrexroth Germany brand
Ball screw ,Linear guide
HIWIN Taiwan brand
GIVI Italy brand
EMB Germany Brand
Servo Motor and drive
Thinkvo China brand
